The Original air curtain for trucks, trailers and semi-trailers.
Brightec’s innovative BlueSeal air curtains for trucks, trailers and semi-trailers are perfected for temperature controlled road transport, designed to keep the cold or heat inside your vehicle.
Our most popular air curtain is driver friendly, installs easily and quietly provides a strong air barrier. Used widely in food distribution and the pharmaceutical industry, BlueSeal air curtain helps keep goods preserved for longer by creating an effective, invisible air barrier.

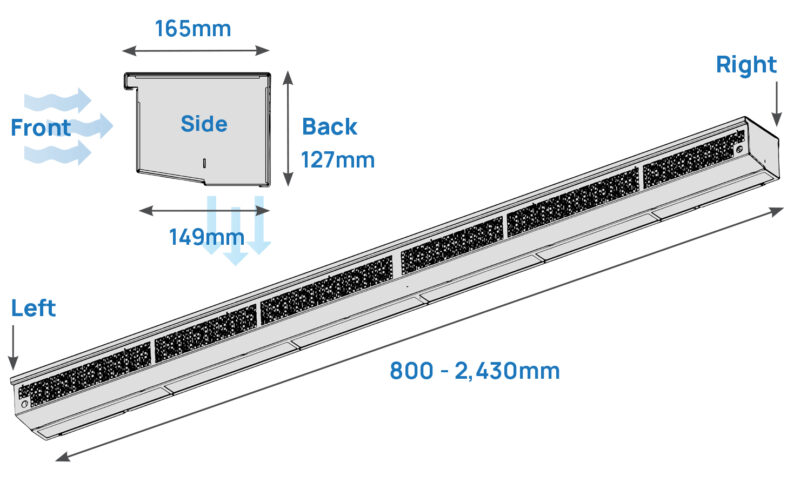

| LENGTH | 800MM – 2,430MM (IN INCREMENTS OF 10MM) |
| HEIGHT | 127MM |
| DEPTH | 149MM |
| MATERIAL | ALUMINIUM (ANODIZED) |
| FAN TYPE | AXIAL |
| # FANS | 27 |
| VOLTAGE | 24V AND 12V |
| ELECTRIC POWER | 120W (50W PER METRE) |
| ELECTRIC CURRENT |
5.0A (2.0 A PER METRE) - 24V MODEL 8.8A (3.6 A PER METRE) - 12V MODEL |
| POWER CABLE POSITION | RIGHT OR LEFT. FRONT, BACK OR THROUGH SIDE |
| AIR FLOW | 36 M³/MIN. (15 M³/MIN. PER METRE) |
| ENVIRONMENTAL TEMP | -25 TO +50 °C |
| WEIGHT | 12.8 KG (5.3 KG PER METRE) |
| NOISE | <60 dB (PIEK CERTIFIED) |
