The most compact air curtain for temperature-controlled transport
The BlueSeal Compact by Brightec features a streamlined design for refrigerated vans, smaller box trucks, vehicles with roller doors and side doors.

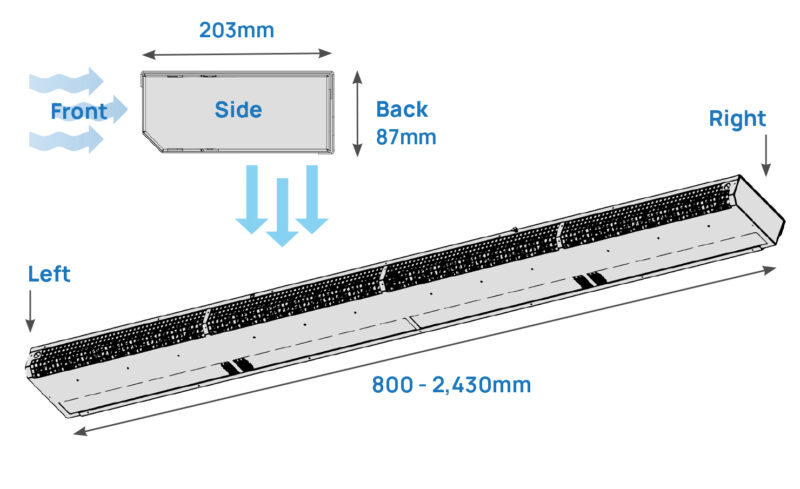

BlueSeal Compact is smaller and lighter than its bigger brother the BlueSeal Original. Designed to fit above any rear or side loading door, this compact model features all of the benefits of BlueSeal with a height of only 87mm.
| LENGTH | 800MM – 2,430MM (IN INCREMENTS OF 10MM) |
| HEIGHT | 87MM |
| DEPTH | 203MM |
| MATERIAL | ALUMINIUM (ANODIZED) |
| FAN TYPE | AXIAL |
| # FANS | 28 |
| VOLTAGE | 24V AND 12V |
| ELECTRIC POWER | 120W (50W PER METRE) 144W (57W PER METRE) – ‘N4’ VERSION |
| ELECTRIC CURRENT |
5.2A (2.1A PER METRE) – 24V MODEL 6.0A (2.5A PER METRE) – 24V MODEL ‘N4’ version 9.1A (3.6A PER METRE) – 12V MODEL |
| POWER CABLE POSITION | RIGHT OR LEFT. FRONT, BACK OR THROUGH SIDE |
| AIR FLOW | 35 M³/MIN. (14.5 M³/MIN. PER METRE) |
| ENVIRONMENTAL TEMP | -25 TO +50 °C |
| WEIGHT | 12.6 KG (5.2 KG PER METRE) |
| NOISE | <60 dB (PIEK CERTIFIED) |
